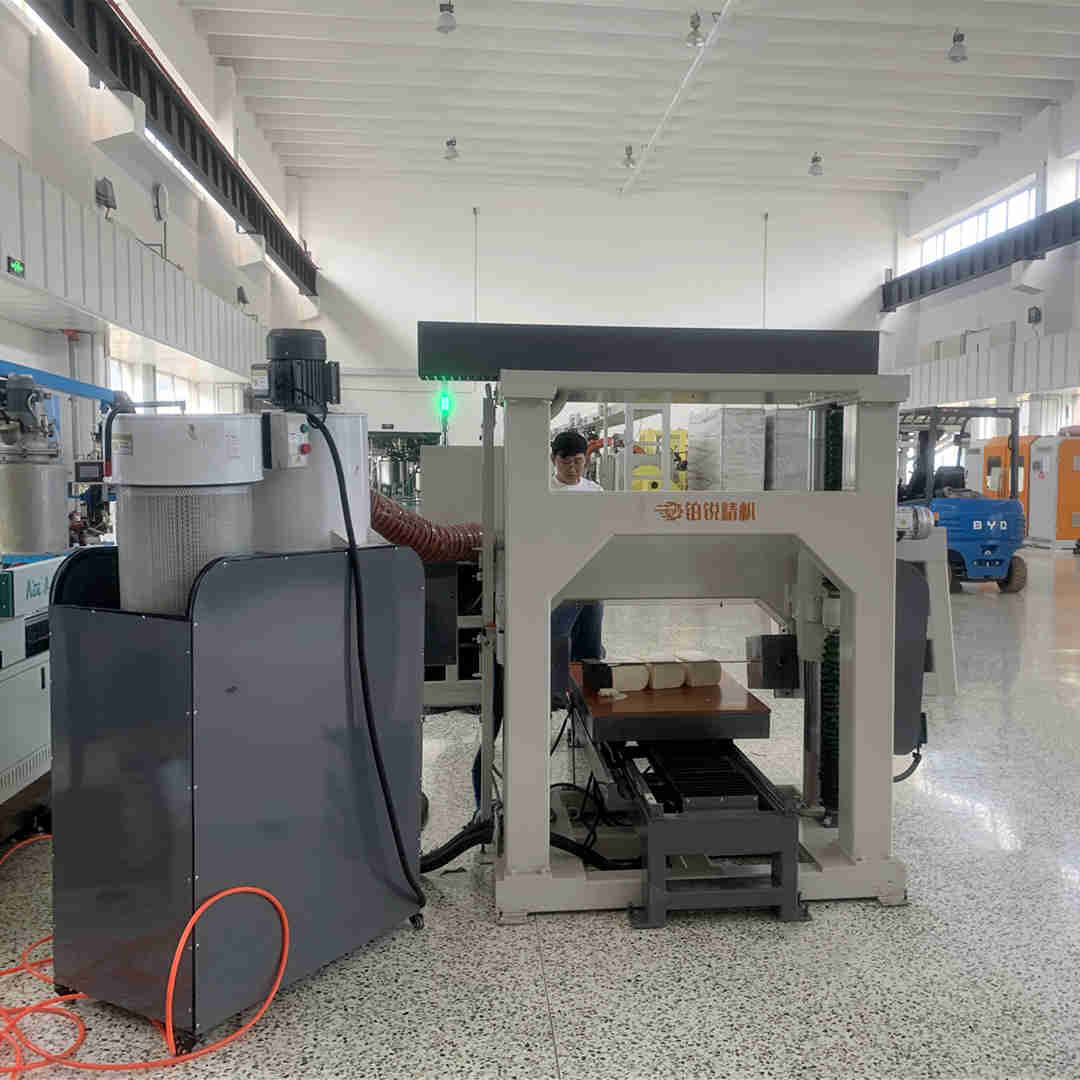

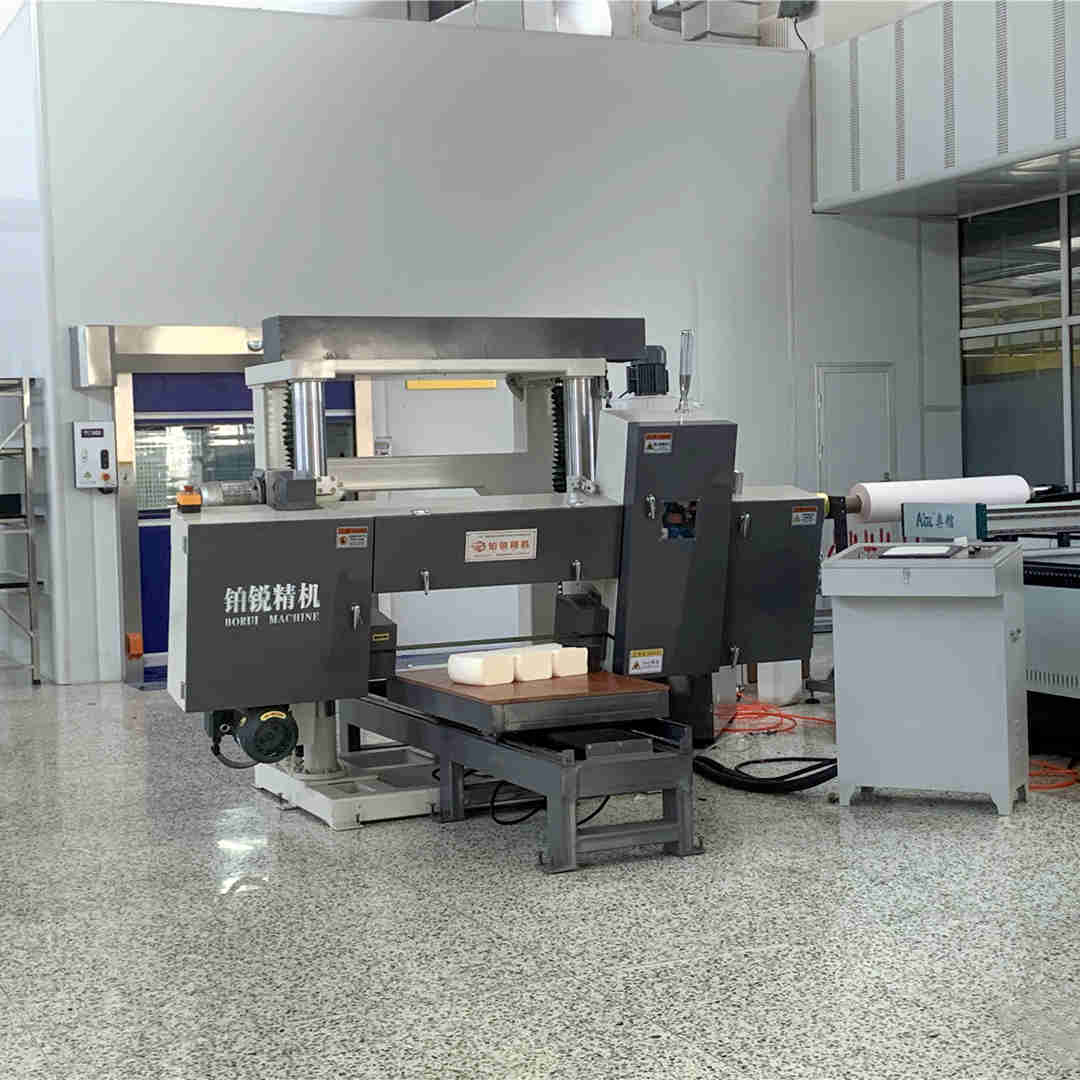

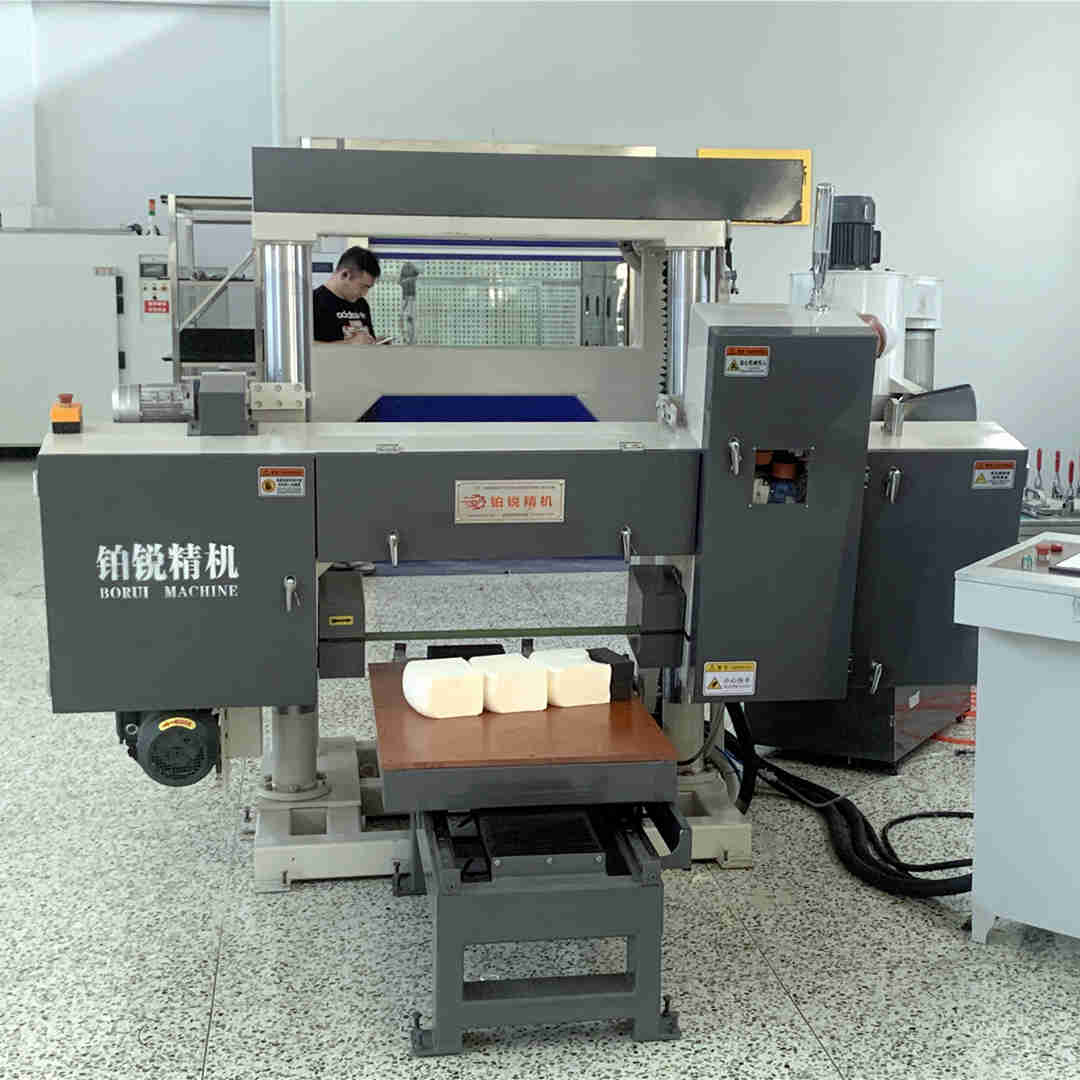

Horizontal High Precision Foam Cutting Machine (With Vacuum)
EQUIPMENT DESCRIPTION:
The machine mainly cutting the block foam into slices. It' s adopt fully automatic digital control, setting the number by control box as need cutting thickness and foam density. The workable adopt stainless steel plate runs and with vacuum, it can adding to pressure roller, and in order to prevent cutting foam removing, easy to operate, cutting precision.
Technical parameters:
型號 Model
BRJX-1250
BRJX-1650
BRJX-2150
切割海綿尺寸 cutting foam size
L1500*W1250*H500mm
L2000*W1650*H800mm
L3000*W2150*H800mm
切割海綿厚度 cutting foam thickness
1-60mm
1-60mm
1-60mm
行走速度 treading speed
0-30m/min
0-30m/min
0-30m/min
總功率 total power
9.5kw
9.5kw
12kw
機器外形尺寸 machine external size
L2200*W2000*H2000mm
L2800*E2200*H2500mm
L3800*W2200*H2500mm
型號 Model
BRJX-1250
BRJX-1650
BRJX-2150
切割海綿尺寸 cutting foam size
L1500*W1250*H500mm
L2000*W1650*H800mm
L3000*W2150*H800mm
切割海綿厚度 cutting foam thickness
1-60mm
1-60mm
1-60mm
行走速度 treading speed
0-30m/min
0-30m/min
0-30m/min
總功率 total power
9.5kw
9.5kw
12kw
機器外形尺寸 machine external size
L2200*W2000*H2000mm
L2800*E2200*H2500mm
L3800*W2200*H2500mm
